Shimaden Lite FREE Software

Shimaden Lite Software is"FREE"with Shimaden controllers and enables the user full function of the controllers from the PC and has a recording feature and alarm notification. With the wizard set-up feature the program automatically locates the controllers and configures the software ready for use, no programming is required. All you need is any Shimaden controller with communications option fitted. It's the best and cheapest way to get your process on line as a convenient mini SCADA system.

Sorry, your browser doesn't support Java(tm).

Controllers Supported

FP21
SR25
SR253 (RS485 not supported)
SR50
SR73A/74A
SR80 (RS422 not available)
MR13 (RS422 not available)
SD16 (RS422 not available)
SD20
FP93
SR90

Features:

Shimaden Lite Guide

Shimaden Wizard to find controllers on the Serial Port.
Simple navigation method to view controllers.
Group View to view up to six controllers at once.
CSV Report generation for viewing data in Excel
Alert window for showing status of controller events.
Toolbar for changing controller parameters

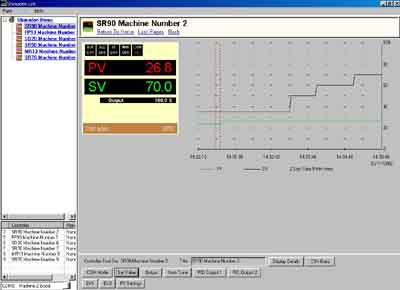

" Controller Like " display and short time interval trend graph.
Access control to prevent changes to controllers, program setups and closing program.
Supports RS485 controllers: SR80, SR90, FP93, SD16, MR13, SR73A/74A, SR50, SD20.
Supports RS422 controllers: SR25, SR253, FP21, SR50, SR73A/74A, SD20.

Download Guide

File Name: Shimaden_Lite_Install.exe
File Size: 3.2 MB
Runs on Windows 95,98,Me, 2000 and XP.
Click "Download Shimaden Lite"to download the software to your desired folder.
Double click the downloaded file to start installation.
Follow the instructions given on each screen.
Use a link on the desktop to "Shimaden Lite" to start the Shimaden Lite software.
When the software is first started, the Shimaden Wizard will start, which can be used to search for the controllers/indicators on the computers serial port.
For further details, please refer to the HELP file.
" NOTE"
Changes to controller setups should only be done by authorized personnel as they will effect the process that the controller is controlling.
Shimaden accepts no responsibility for damage or losses from software supplied.
RS485 (RS422) /RS232 line converter is required for RS485(RS422) communication fitted product.

Download: Shimaden Lite (3.2MB)

Shimaden Lite Guide (122KB)

Shimaden Lite HELP (558KB)
